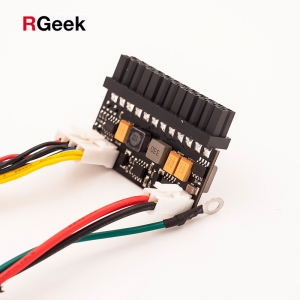

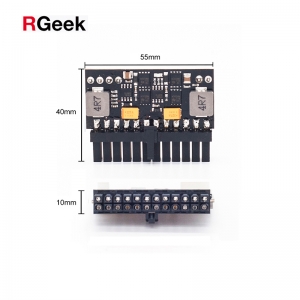

RGeek DC 12V 150W PICO DC PSU

High light:

150 Watt Output 12 Volt DC Input

Fanless design, 100% silent

24 pin ATX connector, Plugs directly into the ATX connector

Solid Polymer Caps on the PCBA, Long life.

Perfect DC PSU for mini ITX Motherboards



Specifications:

INPUT VOLTAGE RANGE:11.4VDC—12.6VDC

INCOMING CURRENT RANGE:16.0A Max @11.4VDC

INPUT SURGING CURRENT:12.0Amax@12VDC

WORK EFFICIENCY:≥85%

Working temperature/humidity:    -5℃ to 55℃ / 45%-75%

Reposition temperature//humidity:   -40℃ to +70℃/ 10%-90%

Atmospheric pressure:  86Kpa—106Kpa

Item

Output voltage Output current(A)

min(V)

avg(V) max(V) ripplewave(mV) Sb current avg

peak

+3.30V

+3.14 +3.30 +3.47 50 0 4

6.0

+5.00VSB

+4.75 +5.00 +5.25 50 0.1 1.5

2.0

+5.00V

+4.75 +5.00 +5.25 50 0 4

6.0

+12.00V

+11.40 12.00 +12.60 120 0 4

8.0

-12.00V

-11.40 -12.00 -12.60 120 0 0.05

0.1

If you want to know more, please contact us for a better plan
