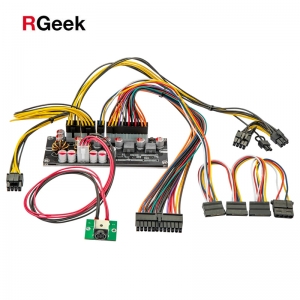

RGeek DC 19V 300W PICO PSU
High light:
- 300 Watt Output, 16-24 Volt DC Input, DC 19V is recommended
- Fanless design, 100% silent
- 24 pin ATX connector, Plugs directly into the ATX connector
- Solid Polymer Caps on the PCBA, Long life.
- Perfect DC PSU for mini ITX Motherboards
- Power Cables included
Specifications:
Input Voltage Range：17V DC—28V DC
Work Efficience：≥85%
Working temperature/humidity: -5℃ to 55℃ / 45%-75%
Reposition temperature//humidity: -40℃ to +70℃/ 10%-90%
Atmospheric pressure : 86Kpa—106Kpa
|
Item |
Output voltage |
Output current（A） |
|||||
|
Min（V） |
Avg （V） |
Max（V） |
ripplewave（mV） |
Sb current | avg | Peak | |
|
+3.30V |
+3.14 | +3.30 | +3.47 | 50 | 0 | 8.0 |
10.0 |
|
+5.00VSB |
+4.75 | +5.00 | +5.25 | 50 | 0.1 |
2 |
2 |
|
+5.00V |
+4.75 | +5.00 | +5.25 | 50 | 0 | 6.0 |
8 |
|
+12.00V1 |
+11.40 | 12.00 | +12.6 | 120 | 0 | 10.0 |
12 |
| +12.00V2 | +11.40 | 12.00 | +12.6 | 120 | 0 | 10.0 |
12 |
|
-12.00V |
-11.40 | -12.00 | -12.6 | 120 | 0 | 0.1 |
0.15 |
