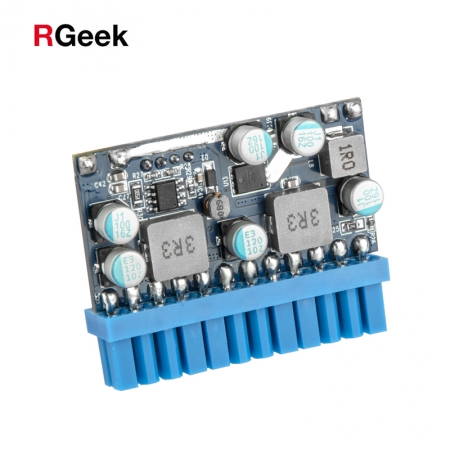

RGeek DC 12V 300W PICO PSU

High light:

  • 300 Watt Output 12 Volt DC Input
  • Fanless design, 100% silent
  • 20+4 pin ATX connector, Plugs directly into the ATX connector
  • Solid Polymer Caps on the PCBA, Long life.
  • Perfect DC PSU for mini ITX Motherboards



Specifications:

INPUT VOLTAGE RANGE:11.4VDC—12.6VDC

INCOMING CURRENT RANGE:28.0A Max @11.4VDC

INPUT SURGING CURRENT:12.0Amax@12VDC

WORK EFFICIENCY:≥85%

Working temperature/humidity :    -5℃ to 55℃ / 45%-75%

Reposition temperature//humidity :  -40℃ to +70℃/ 10%-90%

Atmospheric pressure:    86Kpa—106Kpa

Item

Output voltage Output current(A)

min(V)

avg(V) max(V) ripplewave(mV) Sb current avg

peak

+3.30V

+3.14 +3.30

+3.47

50

0

6 8.0
+5.00VSB +4.75 +5.00 +5.25

50

0.1

1.5

2.5

+5.00V +4.75 +5.00 +5.25

50

0

6

8.0

+12.00V

+11.40 12.00

+12.60

120

0 10

18.0

-12.00V -11.40 -12.00 -12.60 120

0

0.01

0.05

If you want to know more, please contact us for a better plan

RGeek DC 12V 250P PICO PSU

High light:

  • 250 Watt Output 12 Volt DC Input
  • Fanless design, 100% silent
  • 24 pin ATX connector, Plugs directly into the ATX connector
  • Solid Polymer Caps on the PCBA, Long life.
  • Perfect DC PSU for mini ITX Motherboards
  • Power Cables included



Specifications:

Input Voltage Range:11.4V DC—12.6V DC

Incoming Current Range:23.0A Max & 11.4V DC

Input Surging Current:12.0A max & 12V DC

Work Efficience:≥85%

Working temperature/humidity:   -5℃ to 55℃ / 45%-75%

Reposition temperature//humidity:   -40℃ to +70℃/ 10%-90%

Atmospheric pressure :  86Kpa—106Kpa

Item

Output voltage Output current(A)

min(V) avg(V) max(V) ripplewave(mV) Sb current avg peak

+3.30V

+3.14 +3.30 +3.47 50 0 5 6.0

+5.00VSB

+4.75 +5.00 +5.25 50 0.1 1.5 2.5

+5.00V

+4.75 +5.00 +5.25 50 0 5 6.0

+12.00V

+11.40 12.00 +12.60 120 0 10

16.0

-12.00V

-11.40 -12.00 -12.60 120 0 0.05 0.1

If you want to know more, please contact us for a better plan
