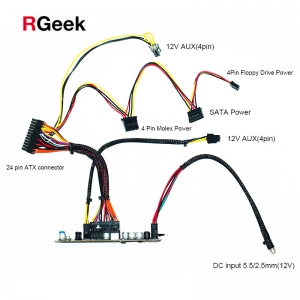

RGeek DC 12V 300W PICO DC PSU

Hight Lights:

  • 300 Watt Output 12 Volt DC Input
  • Fanless design, 100% silent
  • Solid Polymer Caps on the PCBA, Long life.
  • Perfect DC PSU for mini ITX Motherboards
  • Size (L*W*H): 154mm*35mm*10mm(approx)



Specifications:

INPUT VOLTAGE RANGE:11.4VDC—12.6VDC

INCOMING CURRENT RANGE:19.0A Max @11.4VDC

INPUT SURGING CURRENT:19.0Amax@12VDC

WORK EFFICIENCY:≥85%

Working temperature/humidity :    -5℃ to 55℃ / 45%-75%

Reposition temperature//humidity:   -40℃ to +70℃/ 10%-90%

Atmospheric pressure:   86Kpa—106Kpa

Item Output voltage Output current(A)
min(V) avg(V) max(V) ripplewave(mV) Sb current avg peak
+3.30V +3.14 +3.30 +3.47 50 0 6 8.0
+5.00VSB +4.75 +5.00 +5.25 50 0.1 1.5 2.0
+5.00V +4.75 +5.00 +5.25 50 0 6 8.0
+12.00V +11.40 12.00 +12.60 120 0 10 18.0
-12.00V -11.40 -12.00 -12.60 120 0 0.1 0.15

If you want to know more, please contact us for a better plan
