Product Description

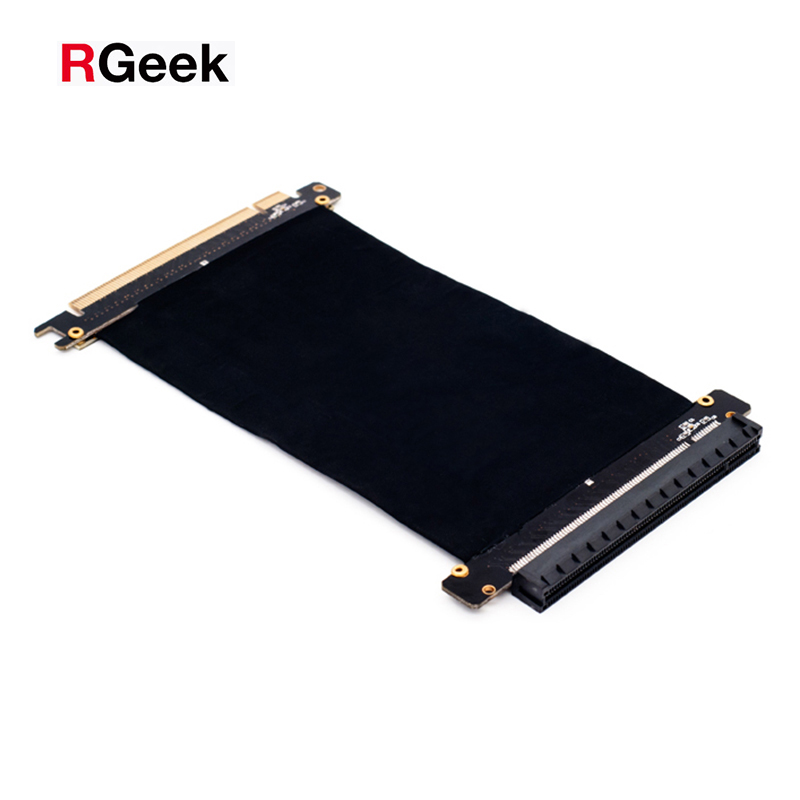

Product name: PCIe graphics card extension cord
Connector 1: PCIe x16 male
Connector 2: PCIe x16 female
Wire length: 5 ~ 100 cm, the length can be customized, welcome to contact our Customer service.
Suitable graphics card: GTX1080ti High-end graphics CARDS, fireprow7100, radeon RX580, VEGA64, prowx5100,
Technical Parameters
| Maximum Speed | 128 Gbps |
| Speed | Bidirectional for PCIe x16, 2.0GB/sec (16Gpbs , 16GT/sec) per PCIe lane, PCIe Gen2 (5Gbps) & PCIe Gen1 (2.5Gbps) compatibles. |
| Header (Male) Connector | PCIe x16 |
| Receptacle (Female) Connector | PCIe x16 |
| Guide line | PCIe Gen3 8Gbps max 18 inch (45cm) |
| Cable Type | Pure copper cable |
| Thickness | 1.2 mm (0.047inch) |
| Width | 94mm (3.7inch) |
| Color | Black |
| Connector Type | Straight (SF)， Right angles (SR) |
| Length: | 20cm, 30cm or other length |
