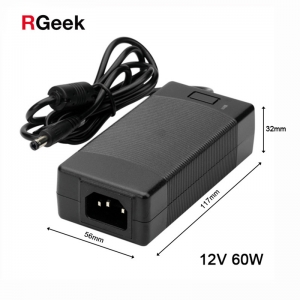

RGeek DC 12V 60W Power Adapter

Description:

Output Voltage: 12V

Output Current: 5A

Output Frequency: 50-60HZ

Output Power: 60W

Input Voltage: AC100-240V

Variation Range: 90-264Vac

Connector Size(mm): diameter 5.5 * 2.5 mm

Supply type OEM service

Certification: CE, ROHS, CCC



Electrical Test Report:

No. Test item Test condition Standard spec Test data Unit Judge
1 2 3 4 Pass/ Fail
1 Output Voltage Vin100Vac 60Hz Io=0 ±5% 12.31 12.65 V Pass
2 Output Voltage Vin100Vac 60Hz Io=Rated Current ±5% 11.66 11.63 V Pass
3 Average Efficiency Vin 115Vac 60Hz 80% 81 80 % Pass
4 Ripple&Noise mVp-p Vin100Vac 60Hz Full load  120mVp-p 68 68 mVp-p Pass
5 Line Regulation Vin=100V~240V Io=Rated Current ±2% 0.00% 0.00% Pass
6 Standby Power Vin 115Vac 60Hz Io=0 0.5W max 0.19 0.19 W Pass
7 Short circuit test Vin100Vac 60Hz No odor smoke fire plastic deformation and excessive heat happen. OK OK Pass
8 OCP Vin100Vac 60Hz 6.5 6.8 A
9 Output Voltage Vin240Vac 50Hz Io=0 ±5% 12.31 12.65 V Pass
10 Output Voltage Vin240Vac 50Hz Io=Rated Current ±5% 11.66 11.63 V Pass
11 Average Efficiency Vin230Vac 50Hz  80% 83 83 % Pass
12 Ripple & Noise mVp-p Vin240Vac 50Hz Full load  120mVp-p 68 68 mVp-p Pass
13 Line Regulation Vin=100V~240V Io=Rated Current ±2% 0.00% 0.00% Pass
14 Standby Power Vin230Vac 50Hz Io=0 0.5W max 0.3 0.3 Pass
15 Short circuit test Vin240Vac 50Hz No odor smoke fire plastic deformation and excessive heat happen. OK OK Pass
16 OCP Vin230Vac 50Hz 7.5 7.6 A
17 Hi-pot test DIELECTRIC STRENGTH Hi-Pot: Primary to secondary: 1800VAc/10mA/3S for type test OK OK Pass
18 Burn in Input:220Vac/50Hz Full Load 4hrs OK OK Pass
19 Drop test Heigh:1m Three*faces(onceon each plane) OK OK Pass

If you want to know more, please contact us for a better plan
