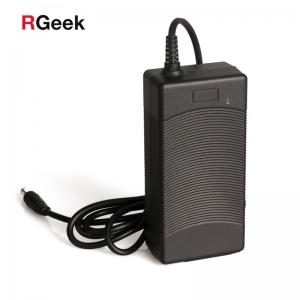

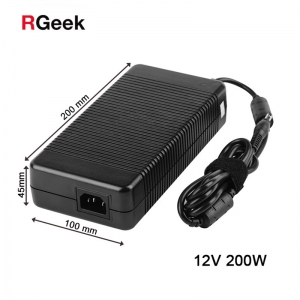

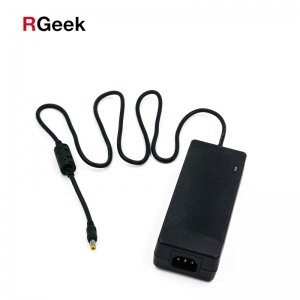

RGeek DC 12V 200W Power Adapter

Description:

Output Voltage: 12V

Output Current: 18A

Output Frequency: 50-60HZ

Output Power: 200W

Input Voltage: AC100-240V

Variation Range: 90-264Vac

Connector Size(mm): diameter 5.5 * 2.5 mm

Supply type OEM service

Certification: CE, ROHS, CCC



Electrical Test Report:

No. Test item Test condition Standard spec Unit Judge

Pass/

Fail

1 Output Voltage Vin100Vac 60Hz Io=0 ±5% V Pass
2 Output Voltage Vin100Vac 60Hz Io=Rated Current ±5% V Pass
3 Average Efficiency Vin 115Vac 60Hz 80% % Pass
4 Ripple&Noise mVp-p Vin100Vac 60Hz Full load  120mVp-p mVp-p Pass
5 Line Regulation Vin=100V~240V Io=Rated Current ±1% Pass
6 Standby Power Vin 115Vac 60Hz Io=0 1W max W Pass
7 Short circuit test Vin100Vac 60Hz No odor smoke fire plastic deformation and excessive heat happen. Pass
8 OCP Vin100Vac 60Hz A
9 Output Voltage Vin240Vac 50Hz Io=0 ±5% V Pass
10 Output Voltage Vin240Vac 50Hz Io=Rated Current ±5% V Pass
11 Average Efficiency Vin230Vac 50Hz  80% % Pass
12 Ripple & Noise mVp-p Vin240Vac 50Hz Full load  120mVp-p mVp-p Pass
13 Line Regulation Vin=100V~240V Io=Rated Current ±2% Pass
14 Standby Power Vin230Vac 50Hz Io=0 1W max Pass
15 Short circuit test Vin240Vac 50Hz No odor smoke fire plastic deformation and excessive heat happen. Pass
16 OCP Vin230Vac 50Hz A
17 Hi-pot test DIELECTRIC STRENGTH Hi-Pot: Primary to secondary: 1800VAc/ 10mA/ 3S for type test Pass
18 Burn in Input:220Vac/50Hz Full Load 4hrs Pass
19 Drop test Heigh:1m

Three*faces( onceon each plane )

Pass

If you want to know more, please contact us for a better plan
